EZ SERIES CLASS I DIVISION II
Green Ignite's Explosion-Proof EZ Series
Green Ignite's Explosion-Proof EZ Series
Green Ignite's Explosion-Proof EZ Series
PART NUMBERS
GI-EPEZ-R30-C1D2 | 3W | 300LM | 100-277V | RED LETTERING
GI-EPEZ-G30-C1D2 | 3W | 300LM | 100-277V | GREEN LETTERING
CLASSIFICATIONS
Marking ATEX
Il2 G Ex ib IIC T4 Gb
Il2 D Ex tb IIIC T80°C Db IP66
Marking IECEx
Ex ib mb IIC T4 Gb
Ex tb IIIC T130°C Db IP66
Marking Marine
UL 924
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
-
Rated for high temperatures, humidity, dust and vapor locations
Built-in battery backup with 3-hour emergency operation
Non-dimmable
Heavy duty & high impact resistant
Fixture remains on with or without main
power. An emergency power only option is available
Warranty: 6 Years
Ambient Temperature (F): -40 - 140 Degrees
L70 Hours: 50,000
CRI: 80
10KvA Surge protection
-
GI-ACC-EPEMS

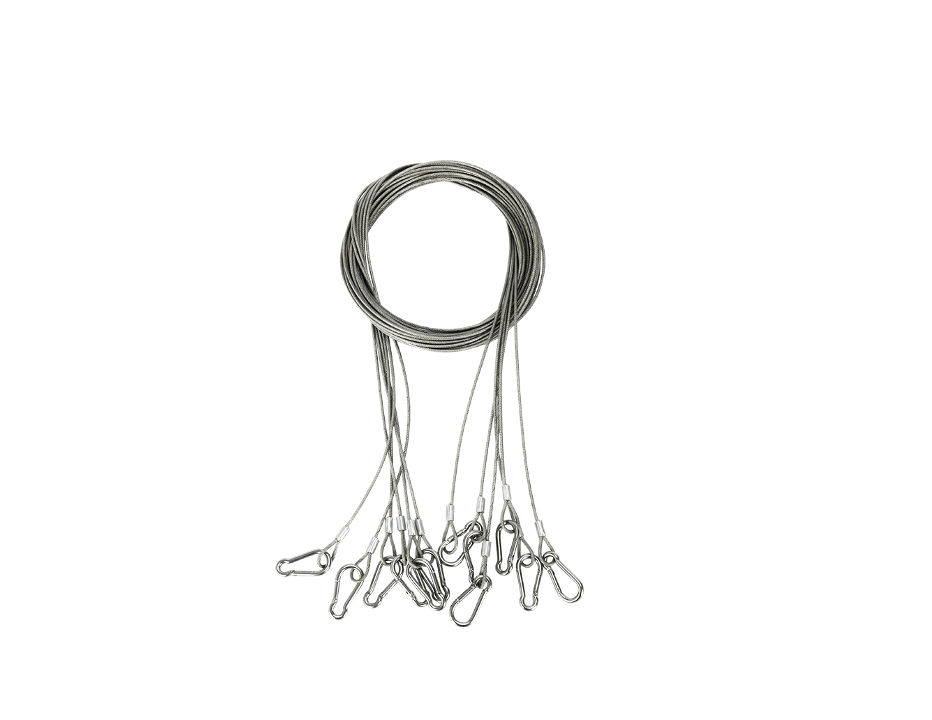

Mounting slingGI-ACC-EPMP
Mounting plate -
GI-ACC-EPSSP
Straight swing pipe -
-
Mounting sling: Stainless steel
Hardware: Stainless steel
Exit sign: Tempered glass
Housing: Copper free aluminum
