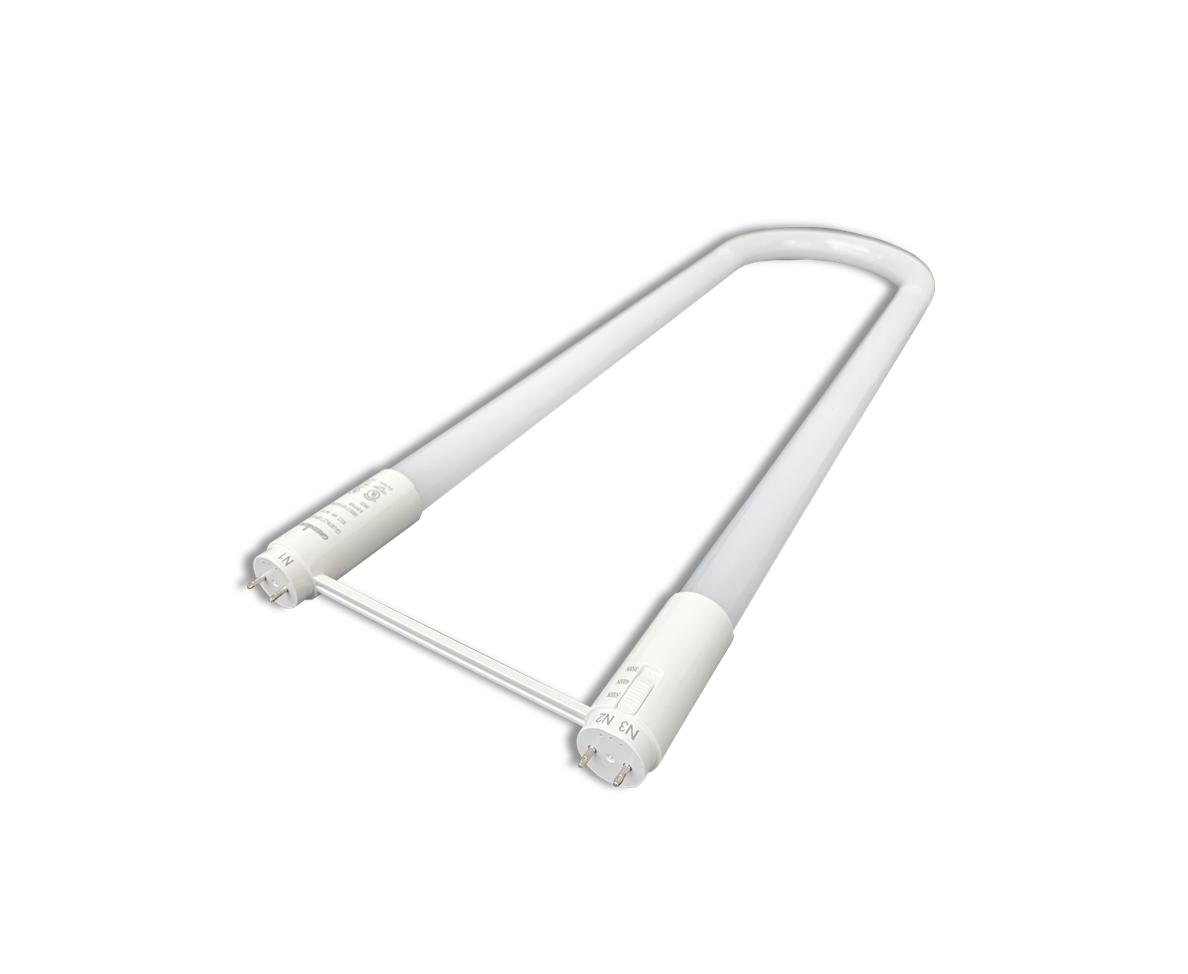

PLASTIC U-TUBE T8/T12 RETROFIT LED LAMPS TEMP SELECTABLE
Green Ignite’s U-Tube LED lamps available in 6'' and 1-5/8’’ Spacing
Green Ignite’s U-Tube LED lamps available in 6'' and 1-5/8’’ Spacing
Green Ignite’s U-Tube LED lamps available in 6'' and 1-5/8’’ Spacing
PART NUMBERS
GI-U1T8-CCT32P-ULMF4 | 15W | 100-277V | 1-5/8” SPACING
35000K / 4000K / 5000K SELECTABLE
GI-U6T8-CCT32P-ULMF4 | 15W | 100-277V | 6” SPACING
35000K / 4000K / 5000K SELECTABLE
GI-U6T8-WD32P-ULMF4 | 13W | 100-277V | 6” SPACING
3500K
GI-U6T8-D32P-ULMF4 | 13W | 100-277V | 6” SPACING
4000K
GI-U6T8-C32P-ULMF4 | 13W | 100-277V | 6” SPACING
5000K
GI-U1T8-WD32P-ULMF4 | 13W | 100-277V | 1-5/8” SPACING
3500K
GI-U1T8-D32P-ULMF4 | 13W | 100-277V | 1-5/8” SPACING
4000K
GI-U1T8-C32P-ULMF4 | 13W | 100-277V | 1-5/8” SPACING
5000K
-
Warranty: Limited 6-Year warranty
CRI: 83
Base: G13
Lens: Polycarbonate
Heat Sink: Frosted polycarbonate
L70 Hours: 50,000 Hour
lifespanAmbient temp (F):
-4 - 113 DegreesPower Factor: >0.9
IP Rating: IP20
THD: <20%
Beam Angle: 240 Degree
Wiring: Multifunctional -
Can be direct wired or used with a ballast
-
